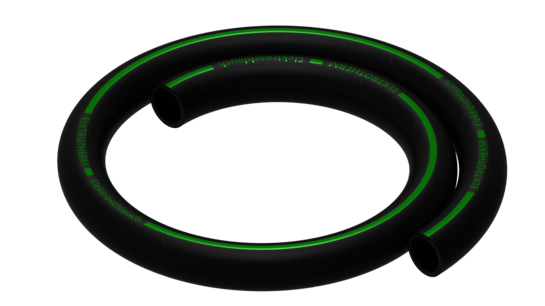

"ElektroTherm" pressure hoses

Key Facts

  • Size

    DN 13 - DN 80

  • Temperature range

    -35°C to +80°C

  • Dielectric strength

    >6 kV/mm

  • Characteristic

    flame retardant, self-extinguishing

Description

High-quality cable protection and cooling hoses, which we preferably use with our water-cooled power cables.

The hoses are produced in manufacturing lengths of 40 m.

However, we can also supply any cut length according to customer requirements at a small extra charge.

Technical data of our standard sizes

For more details please choose a filter.
Seele: schwarz isolierend, ca. 78 ± 5° shore Oberflächenwiderstand:   5 x 10^11Ohm
Durchschlagfestigkeit: 6 kV / mm Mediendauertemperatur: -30 bis +100 °C
Einlagen: synthetische Druckträger Medienspitzentemperatur:+ 150 °C
Decke: entsprechend Seele
Aussenschutz: schwarzer Elastomer, flammwidrig, selbstverlöschend, elektrischer Widerstand > 10^9 Ohm
For more details please choose a filter.
Nennweite Wandstärke ca. Betriebsdruck Berstdruck Biegeradius ca. ca. Gewicht per Meter Bestellanfrage
19 mm 6 mm 10 bar 50 bar 150 mm 0,6 kg Request
25 mm 6 mm 10 bar 50 bar 200 mm 0,75 kg Request
30 mm 6,5 mm 10 bar 40 bar 240 mm 0,95 kg Request
35 mm 8 mm 10 bar 40 bar 280 mm 1,35 kg Request
40 mm * 8 mm 10 bar 40 bar 320 mm 1,5 kg Request
42 mm 8 mm 10 bar 40 bar 330 mm 1,6 kg Request
50 mm 8 mm 10 bar 30 bar 400 mm 1,85 kg Request
55 mm 8 mm 10 bar 30 bar 440 mm 2,0 kg Request

* = no cable standard
other dimensions on request.
