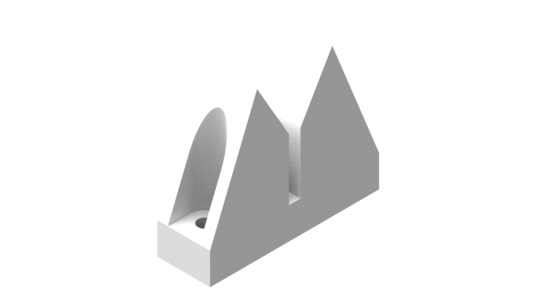

Prism trays for products in PE500 / PP

Especially robust grinded from plates

Attention! We need product rail dimension with your order!

For more details please choose a filter.
For Prod. Rail Height in mm Dimension in mm   Drill in mm   Part No. order request
L1 L2 B H1 H2 H3 PE-500 PP
60 140 100 50 120 75 30 12 8100010 8100011 Request
120 160 120 50 140 88 30 12 8100030 8100031 Request
150 220 150 60 220 160 40 12 8100150 8100151 Request
200 250 180 60 250 180 50 12 8100200 8100201 Request
For more details please choose a filter.
For Prod. Rail Height in mm Dimension in mm   Drill in mm   Part No. order request
L1 L2 B H1 H2 H3 PE-500 PP
60 140 100 40 120 80 30 12 8100080 8100081 Request
120 160 130 40 140 105 30 12 8100085 8100086 Request
150 220 150 50 220 160 40 12 8100090 8100091 Request
200 250 180 50 250 180 50 12 8100095 8100096 Request
