Water cooled single conductor cables

Key Facts

  • Cross section

    120  mm² - 700 mm²

  • Current

    1.500 A - 7.000 A

  • Surface

    bright
    tin-plated
    silver-plated
    nickel plated

Description

Type A,
Preference for Net Frequency

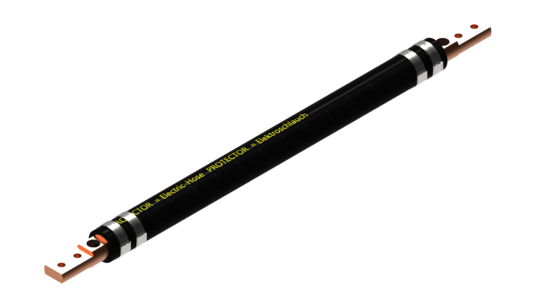

Stranded cable with in pressed E-Cu wires, terminals (cable heads) in E-Cu pure or silver plated per your request.

Insulation made from not electrical conducting cooling hoses, recommended for operating pressures from 6 bar to 10 bar.

Connecting head and water connection are positioned on one level to each other. To ease installation positions can be changed per your inquiry.

Cable heads are available for various applications.

Tube contacts for screw- on purposes

Additional free zones for assembly are possible

Standard sizes

For more details please choose a filter.
Cable Cross Section mm² Current I/50 Hz Assembly Dimensions rel. to drawing Part Number order request
A B D D1 (ca.) d E F S R*
120 1500 80 50 25 35 9 25 12.5 10 3/8" 2412000 Request
200 2500 90 60 30 40 11 30 15 12 3/8" 2420000 Request
300 3500 90 60 35 46 11 30 15 15 3/8" 2430000 Request
400 4300 120 80 42 54 13 40 20 20 1/2" 2440000 Request
500 5000 120 80 55 67 13 40 20 20 1/2" 2450000 Request
600 6000 120 80 55 67 13 40 20 20 1/2" 2460000 Request
700 7000 120 80 55 67 13 40 20 25 1/2" 2470000 Request

Please, include required length (over all, total), * other winds per your request.
