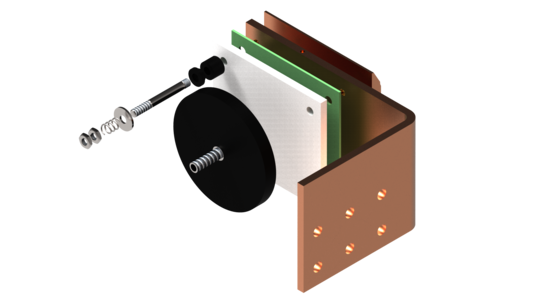

Spare parts pneumatic contact systems

Replacement pressure elements

Pressure pillows made from synthetic rubber cover all kinds of application and are standard for ampac’s Pneumatic Contacts. For extreme temperature and chemical conditions we advise PTFE- Pillows.

For more details please choose a filter.
Available Diameter in mm Pillow from Part No. order request
100 synth. Rubber 8951010 Request
100 PTFE 8951020 Request
150 synth. Rubber 8951510 Request
150 PTFE 8951520 Request
180 synth. Rubber 8951810 Request
180 PTFE 8951820 Request
200 synth. Rubber 8952010 Request
200 PTFE 8952020 Request

Also available as rectangle pressure pillow.

Accessories and assembly material for pneumatic High-Current-Contacts

For more details please choose a filter.
Description Type Part No. order request
Pressure Control / Control Range 1-10 bar G- 1/4“-inside 600 8950010 Request
Pressure Control / Control Range 1-10 bar G- 1/4“-outside to turn 601 8950020 Request
Pressure Control / Digital Indicator, programmable per request   8950030 Request
PP-Wind straight outside G 1/4“, hose DN6/8   8950040 Request
PP-Wind 90° , outside G1/4“, hose DN6/8   8950050 Request
PP-Wind straight inside G1/4“, hose DN 6/8   8950055 Request
PP-Wind 90° inside G1/4“, hose DN 6/8   8950060 Request
PP-Wind T-part for hose DN 6/8   8950065 Request
Pressure Control with Filter and hand manual operated valve Modul 1 8950070 Request
Pressure Control with Filter, manual operated valve and integrated
 pressure switch
Modul 2 8950080 Request
Pressure Hose DN 6/8 mm PA PA 8950090 Request
Pressure Hose DN 6/8 mm PE PE 8950092 Request
Pressure Hose DN 6/8 mm PU PU 8950094 Request
