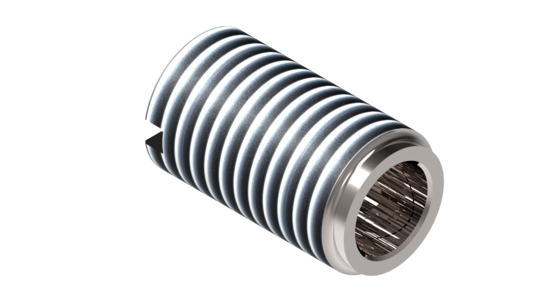

Bolt tubes with outside wind, Type BAG
For direct assembly into current guidance, contact block, collective guidance or housing. In connection with our plugs with wind or press assembly without locking system, safe contacts can be established in a quick manner. Bolt tubes are designed with tool gaps for the use of appropriate tooling.
Because of the outside wind bolt tubes have to be screwed against solid limit or fixed with two nuts and washers to current- guidance.
Per your request we supply adequate nuts and washers. We note light greasing before utilization mandatorily.
Technical Data
For more details please choose a filter.
| Type | Current in Ampere at 80°C |
Dimension in mm | Pushforce N |
Part Number | order request | ||||
|---|---|---|---|---|---|---|---|---|---|
| ØA | ØB | C | K | L | |||||
| BAG 2 | 35 | M8x0,75 | 2 | 16.5 | 1.5 | 1.5 | 8 | 3500091 | Request |
| BAG 3 | 40 | M8x0,75 | 3 | 16.5 | 1.5 | 1.5 | 10 | 3500092 | Request |
| BAG 4 | 65 | M8x0,75 | 4 | 19.5 | 1.5 | 1.5 | 22 | 3500093 | Request |
| BAG 5 | 70 | M10x1 | 5 | 19.5 | 2 | 1.5 | 22 | 3500094 | Request |
| BAG 6 | 100 | M12x1 | 6 | 19.5 | 2.5 | 2 | 25 | 3500095 | Request |
| BAG 8 | 130 | M14x1 | 8 | 34 | 2.5 | 2.5 | 25 | 3500096 | Request |
| BAG 10 | 200 | M18x1 | 10 | 34 | 3.5 | 3.5 | 35 | 3500097 | Request |
| BAG 12 | 230 | M20x1 | 12 | 34 | 3.5 | 3.5 | 35 | 3500098 | Request |
| BAG 14 | 300 | M22x1 | 14 | 38 | 4 | 4 | 50 | 3500099 | Request |
| BAG 16 | 350 | M24x1 | 16 | 38 | 4 | 4 | 70 | 3500100 | Request |
| BAG 18 | 400 | M28x1 | 18 | 42 | 4 | 4 | 100 | 3500101 | Request |
| BAG 20 | 500 | M30x1 | 20 | 42 | 5 | 5 | 120 | 3500102 | Request |
| BAG 25 | 580 | M42x1,5 | 25 | 62 | 5 | 5 | 120 | 3500103 | Request |
| BAG 30 | 900 | M48x1,5 | 30 | 62 | 5 | 5 | 120 | 3500104 | Request |
| BAG 35 | 1200 | M50x1,5 | 35 | 62 | 5 | 5 | 150 | 3500105 | Request |
| BAG 40 | 1500 | M55x1,5 | 40 | 62 | 6 | 6 | 150 | 3500106 | Request |
