ampac power block "Slim-Fit"

Key Facts

  • Current

    2.000 A - 2.500 A (water-cooled)

  • Cooling

    Air cooling / optional water cooling

  • Sensor

    Optional thermal monitoring with PT-100 / PTC80

    Standard with pressure monitoring

  • Special features

    High current densities even with light goods carriers

    Extremely robust construction

    Easy to maintain

Description

Ampac´s compact contact system ready for connection and assembly for busbars from 80 - 120 mm height.

This contact fits into almost every manual or fully automatic system. The electrical connection can be made directly on or at conductor rails without the use of additional flexible bands. The drive side can be either left or right. The counter contact is made from copper as standard and equipped with scraping grooves. On request, the mating contact is available with optional water cooling and a temperature sensor (PT100).

A pressure switch is always included in the scope of delivery.

For manually operated systems, we supply the contacts with hand lever valves and corresponding fittings on request at extra charge.



(*) On request also for currents bigger 2.500 Ampere realizable.

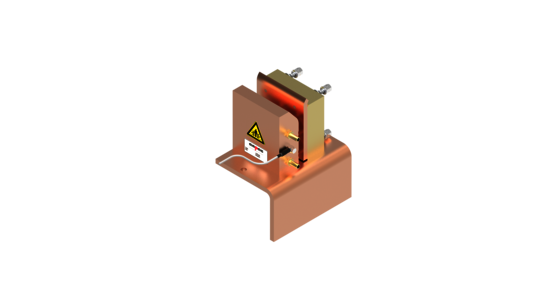

Execution: right driven with water cooling and PT100

For more details please choose a filter.
driven
site
PT100 count contact
water-cooled
Busbar
thickness
Part No. order request
left no no 10 8920110 Request
right no no 10 8920210 Request
left no no 15 8920115 Request
right no no 15 8920215 Request
left yes yes 10 8921110 Request
right yes yes 10 8921210 Request
left yes yes 15 8921115 Request
right yes yes 15 8921215 Request
