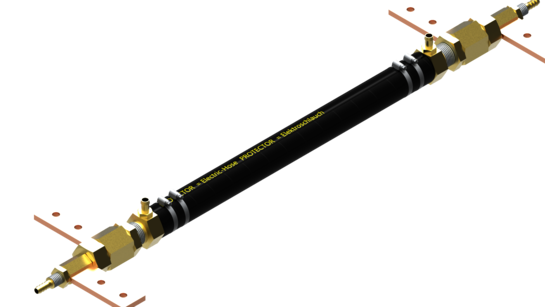

Water cooled coaxial cable


The application for this kind of cable are conductive heaters and hardening equipment as well as welding processes.

The design of the cable carries an electrical neutral and flexible center hose as a carrier for the braid of Cu wires. With a special process the cable is pressed into the cable head or soldered.

For the outer insulation and cooling we utilize our highly accepted electro hoses for an operating pressure up to 10 bar. Devices to ring-press the hose safely to the cable head are antimagnetic.

Water cooled Coaxial Cable is not manufactured in standard sizes, yet made to the specific customer inquiry.

For cable with tube assembly we can supply the adequate screw-on.
