Stainless Steel Protectiong Housing

Spare parts for finger contact systems

Description

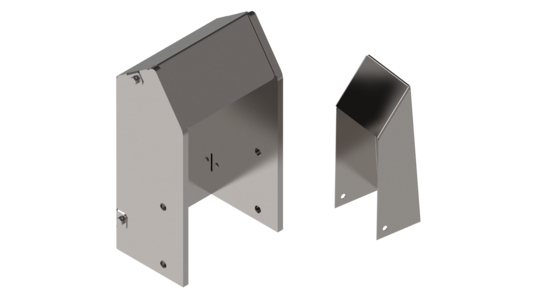

ampac stainless steel protecting housing takes care of early mechanical damage at drive-in of heavy product carrier equipment.

In the housing integrated 10mm strong direction catches the rail and leads to a proper seat in the contact. Also finger-contacts with casted directions, housing application is reasonable, because there is an efficient protection against any kind of chemical splashes.

Finger-contacts with casted directions do not need housing with these devices.

For more details please choose a filter.
Fitting for Contact-Block For Guidance Height in mm B in mm H in mm H 1 in mm Part No. Finger Cont. Standard order request
500-1500 A 120 80 185 215 9500010 Request
2000 A 120 100 185 215 9500020 Request
2500 A 120 112 185 215 9500025 Request
3000 A 120 156 185 215 9500030 Request
4000 A 200 148 250 270 9500040 Request
6000 A 200 164 250 270 9500060 Request
8000 A 200 234 250 270 9500080 Request
10000 A 200 294 250 270 9500100 Request
12000 A 200 354 250 270 9500120 Request
For more details please choose a filter.
Fitting for Contact-Block For Guidance Height in mm B in mm H in mm Part No. Finger Cont. Casted Dir. order request
500-1500 A 120 74 188 9510010 Request
2000 A 120 89 188 9510020 Request
2500 A 120 109 188 9510025 Request
3000 A 120 139 212 9510030 Request
4000 A 200 139 212 9510040 Request
