Connecting plugs (male) without locking, press process
to contact plugs (female) with adequate diameter.

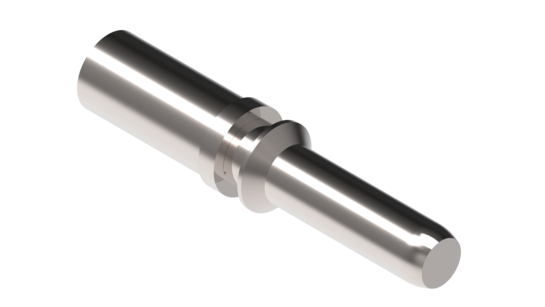

Plug with press connection for flexible cable, Type SP
Because of high variances in possible cables, we ask you to agree and to confirm the adequate press- tooling with us. Also soldering into the plug is possible.
Technical Data
For more details please choose a filter.
| Cable Cross Section in mm² | Dimension in mm | Part Number | order request | |||
|---|---|---|---|---|---|---|
| ØB | C | D | N | |||
| 4 | 3 | 16.5 | 33.5 | 5 | 3500031 | Request |
| 6 | 3 | 16.5 | 33.5 | 5 | 3500032 | Request |
| 6 | 4 | 19.5 | 38 | 4.5 | 3500033 | Request |
| 10 | 5 | 19.5 | 43 | 7.5 | 3500034 | Request |
| 10 | 6 | 19.5 | 42.5 | 7 | 3500036 | Request |
| 16 | 6 | 19.5 | 42.5 | 7 | 3500037 | Request |
| 16 | 8 | 34 | 56 | 6 | 3500038 | Request |
| 25 | 8 | 34 | 65 | 12 | 3500039 | Request |
