Standard pneumatic contacts (flexible power supply)

Key Facts

  • Current

    1.500 A - 20.000 A

  • Cooling

    Air cooling / optional water cooling

  • Sensor

    Thermal monitoring with PT-100 / optional PTC80

    Standard with pressure monitoring

  • Special features

    High current densities even with light goods carriers

    Extremely robust construction

    Easy to maintain

Description

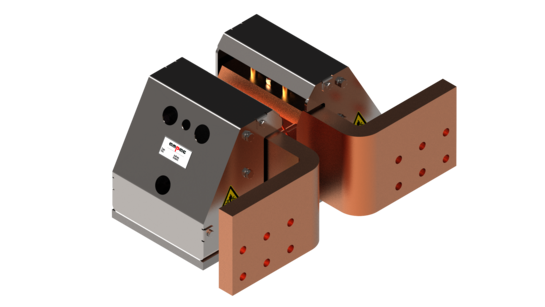

ampac-Standard-Contact-System for
fully automatic and manual operated equipment with product rail up to
200 mm height.

Operating pressure at 6 bar.

  • With one side* / both sides movable contacts
  • With replaceable wearing-off contact-plates
  • At both sides movable contact angles;
    the power connection is made via current bands or connecting current cable. (please see accessory/ Connecting cable for pneumatic contacts) Kontakte)
  • Optional cooling of contact plates
  • Supply with pressure control and temperature sensors
For more details please choose a filter.
Current Part in Ampere With Cooling** Ampere E-Cu Conn. Guidance Housing VA pure etched Pressure unit in Nylon Part No. order request
1.500*   1 x 120 x 10 8901510 Request
2.000*   1 x 120 x 15 8902010 Request
3.000*   1 x 120 x 20 8903010 Request
4.000*   2 x 150 x 10 8904010 Request
6000   2 x 150 x 15 8906010 Request
8000   2 x 150 x 20 8908010 Request
  10.000 ** 2 x 150 x 25 8910010 Request
  12.500 ** 2 x 150 x 30 8912510 Request
  15.000 ** 2 x 180 x 30 8915010 Request
For more details please choose a filter.
Current Part in Ampere With Cooling** Ampere E-Cu Conn. Guidance Housing VA pure etched Pressure unit in PTFE Part No. order request
1.500*   1 x 120 x 10 8901520 Request
2.000*   1 x 120 x 15 8902020 Request
3.000*   1 x 120 x 20 8903020 Request
4.000*   2 x 150 x 10 8904020 Request
6000   2 x 150 x 15 8906020 Request
8000   2 x 150 x 20 8908020 Request
  10.000 ** 2 x 150 x 25 8910020 Request
  12.500 ** 2 x 150 x 30 8912520 Request
  15.000 ** 2 x 180 x 30 8915020 Request
For more details please choose a filter.
Current Part in Ampere With Cooling** Ampere E-Cu Conn. Guidance Housing St 37 Powder sintered Pressure unit in Nylon Part No. order request
1.500*   1 x 120 x 10 8901530 Request
2.000*   1 x 120 x 15 8902030 Request
3.000*   1 x 120 x 20 8903030 Request
4.000*   2 x 150 x 10 8904030 Request
6000   2 x 150 x 15 8906030 Request
8000   2 x 150 x 20 8908030 Request
  10.000 ** 2 x 150 x 25 8910030 Request
  12.500 ** 2 x 150 x 30 8912530 Request
  15.000 ** 2 x 180 x 30 8915030 Request
For more details please choose a filter.
Current Part in Ampere With Cooling** Ampere E-Cu Conn. Guidance Housing St 37 Powder sintered Pressure unit in PTFE Part No. order request
1.500*   1 x 120 x 10 8901540 Request
2.000*   1 x 120 x 15 8902040 Request
3.000*   1 x 120 x 20 8903040 Request
4.000*   2 x 150 x 10 8904040 Request
6000   2 x 150 x 15 8906040 Request
8000   2 x 150 x 20 8908040 Request
  10.000 ** 2 x 150 x 25 8910040 Request
  12.500 ** 2 x 150 x 30 8912540 Request
  15.000 ** 2 x 180 x 30 8915040 Request

 ** At these current sizes in Ampere the cooling in the contacts has to be utilized to avoid overheating.
Reasons for overheating are dirty contacts, asymmetric distribution from balancer or to small dimensions at designed connecting rail.
