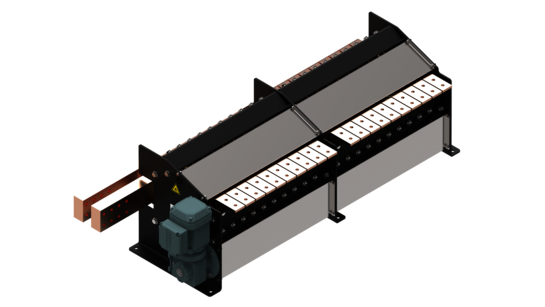

Switch motor-driven / standard design

Switch

Key Facts

  • Current

    1,000 A - 10,000 A
    (>10,000 A on request)

  • Special features

    Extremely robust design
    Drive electric

  • Sensor

    Optional thermal monitoring with PT-100 / PTC80

  • Engineering usage

    Disconnector (On - Off)
    Pole changer (+ / -)
    Changeover switch (same pole A → B / A → C)

High current switch motor-driven up to 10.000 A

For under “no current” switching to separate, switch or switch Pole

Switch units are built in a robust steel ( or stainless steel ) frame. The function is created by gear drives. Depending on space and line architectural conditions, switches can be installed to floor, wall or ceiling.
We supply switches in three different Types:

I.)  Switch unit with drive with open and close devices for integration into an existing control system.

II.) witch unit like 1 yet with additional sensor control, supplied in a separate housing. Also possible for utilization as a remote control.

III.) As full automatic switch unit with time-relays, which can be adjusted anode / cathode for the range of 2 until 100 sec.

Other control ranges are possible

Reversing switch 2-pole

For more details please choose a filter.
 Current Ampere DC Assembly Dimensions mm Drive Part No. order request
Length   Width Depth
L1 L2 B T
500-1.000 358 488 460 440 9720103 Request
2000 468 598 460 440 9720203 Request
3000 578 708 460 440 9720303 Request
4000 688 818 460 440 9720403 Request
5000 798 928 460 440 9720503 Request
6000 908 1038 460 440 9720603 Request
7000 1018 1148 460 440 9720703 Request
8000 1128 1258 460 440 9720803 Request
10000 1348 1478 460 440 9721003 Request
For more details please choose a filter.
 Current Ampere DC Assembly Dimensions mm Drive and Control Unit Part No. order request
Length   Width Depth
L1 L2 B T
500-1.000 358 488 460 440 9720102 Request
2000 468 598 460 440 9720202 Request
3000 578 708 460 440 9720302 Request
4000 688 818 460 440 9720402 Request
5000 798 928 460 440 9720502 Request
6000 908 1038 460 440 9720602 Request
7000 1018 1148 460 440 9720702 Request
8000 1128 1258 460 440 9720802 Request
10000 1348 1478 460 440 9721002 Request
For more details please choose a filter.
 Current Ampere DC Assembly Dimensions mm Drive and Automatic Part No. order request
Length   Width Depth
L1 L2 B T
500-1.000 358 488 460 440 9720105 Request
2000 468 598 460 440 9720205 Request
3000 578 708 460 440 9720305 Request
4000 688 818 460 440 9720405 Request
5000 798 928 460 440 9720505 Request
6000 908 1038 460 440 9720605 Request
7000 1018 1148 460 440 9720705 Request
8000 1128 1258 460 440 9720805 Request
10000 1348 1478 460 440 9721005 Request

2-pole Switch

For more details please choose a filter.
Current in Ampere DC Drive Part No. order request
500-1.000 9730104 Request
       2.000 9730204 Request
       3.000 9730304 Request
       4.000 9730404 Request
       5.000 9730504 Request
       6.000 9730604 Request
       7.000 9730704 Request
       8.000 9730804 Request
     10.000 9731004 Request
For more details please choose a filter.
Current in Ampere DC Drive + control unit Part No. order request
500-1000 9730105 Request
2000 9730205 Request
3000 9730305 Request
4000 9730405 Request
5000 9730505 Request
6000 9730605 Request
7000 9730705 Request
8000 9730805 Request
10000 9731005 Request

On request we can provide you a drawing with the installation dimensions and dimensions as a fax or as a pdf-file available.
